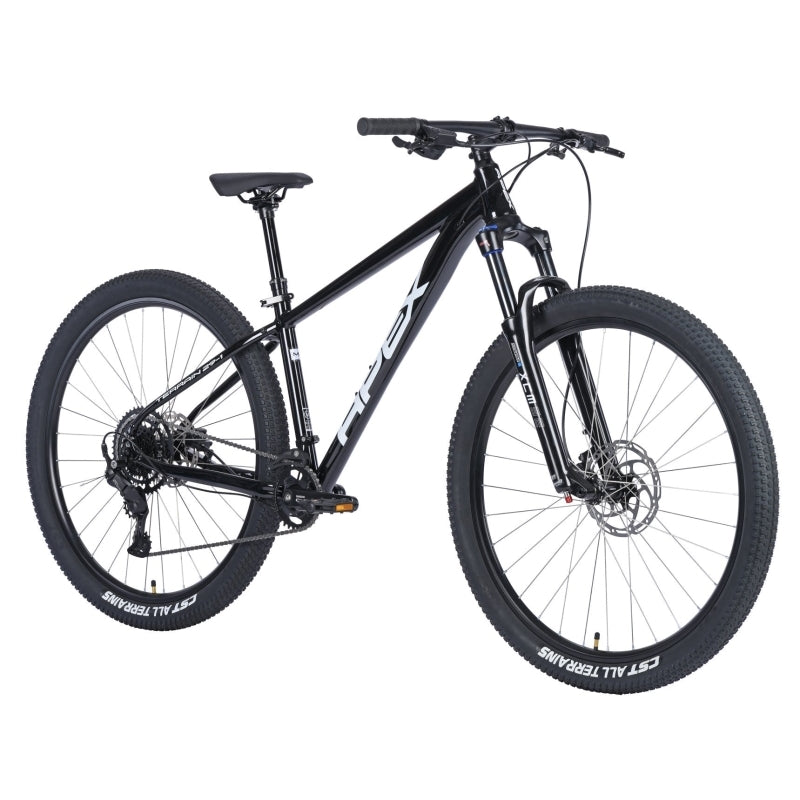

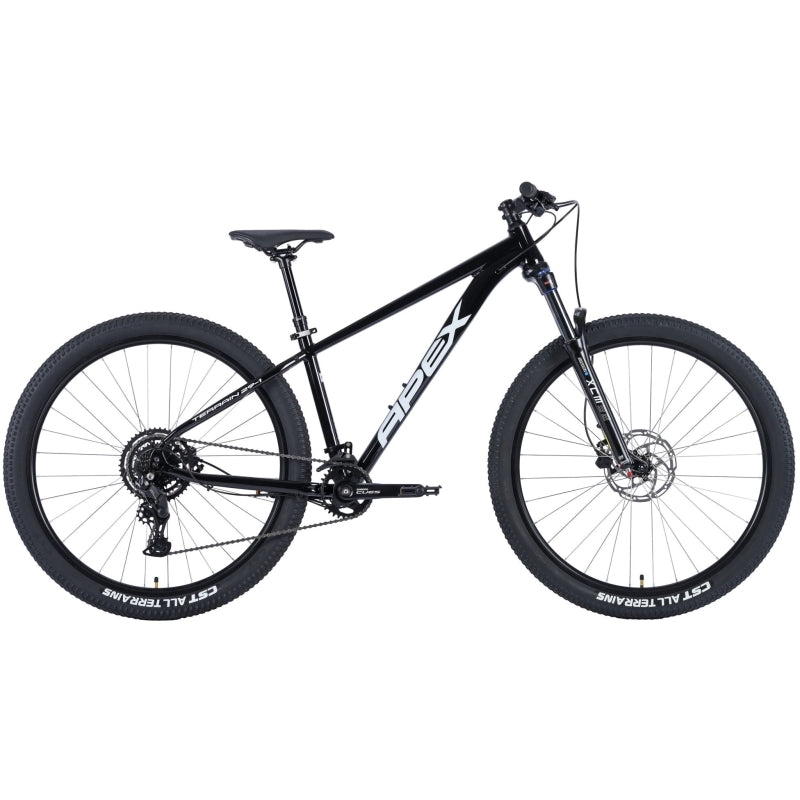

Apex Terrain 29-1

Apex Terrain 29-1

$1,599.99 NZD
$1,599.99 NZD
Sale Contact Us
Taxes included.
Colour
Size
The Terrain 27.5-1 & 29-1 is built for the outdoor adventurer. Its lightweight alloy frame delivers high performance, while the dropper seatpost provides easy, on-the-fly adjustability for greater control and confidence. Shimano CUES 1x9 speed components with LinkGlide technology ensure smooth, reliable shifting, and low gearing powers you effortlessly up any climb. With 100-120mm of front Air suspension and powerful Tektro hydraulic disc brakes, this bike is ready to tackle everything from city streets to off-road trails!

Technical Specifications

Components

GRIPS Apex MTB soft Kraton
HANDLEBAR Lightweight Alloy 31.8mm, 5mm rise, 9 degree sweep, XS=700mm, S&M =720mm, L,&XL=740mm
HEADSET Intergrated 1 1/8 Ahead
PEDALS Resin MTB platform with ball bearings
SADDLE Apex MTB Design 138mm
SEATPOST Kind Shock Dropper KSP900-i, XS&S=100mm, M=125mm, L=150mm, XL=170mm travel, Internal routing, 31.6mm
STEM Lightweight Alloy ahead, XS,S&M=60mm, L=80mm, XL=100mm, with Alloy cap

Drivetrain

BRAKE LEVERS Included with Brakeset
BRAKES Tektro HD-M276 Short reach (XS&S size), HD-M275 (M,L&XL size) Hydraulic disc, 180mm front/160mm rear rotors
CASSETTE Shimano Cassette Cues LG300 11-46T 9 Speed
CHAIN Shimano CN-LG500 Link Glide
CRANKSET Shimano Cues FC-UT400-1, with 32T Chainring
REAR DERAILLEUR Shimano Cues RD-U4000 Shadow 9 Speed
SHIFTERS Shimano Cues SL-U4000 9 Speed

Frame

FORK SR Suntour XCM32 AIR, 110x15mm boost thru axle, XS=100mm, S,M,L,XL=120mm travel with low speed rebound adjust and lockout
FRAME 6061 27.5/29 Lightweight Alloy with Internal cable routing and replaceable dropout

Other

ACCESSORIES N/A

Wheels

HUBS Shimano TC500 Boost 110x15mm Thru axle 32H front, Shimano QC300 QR 32H rear
RIMS Alloy 32H Double Wall F/V
SPOKES Stainless Steel
TYRES CST All Terrains 27.5/29 x 2.35

Technical Information

WHEEL SIZE 27.5 INCH / 650B
