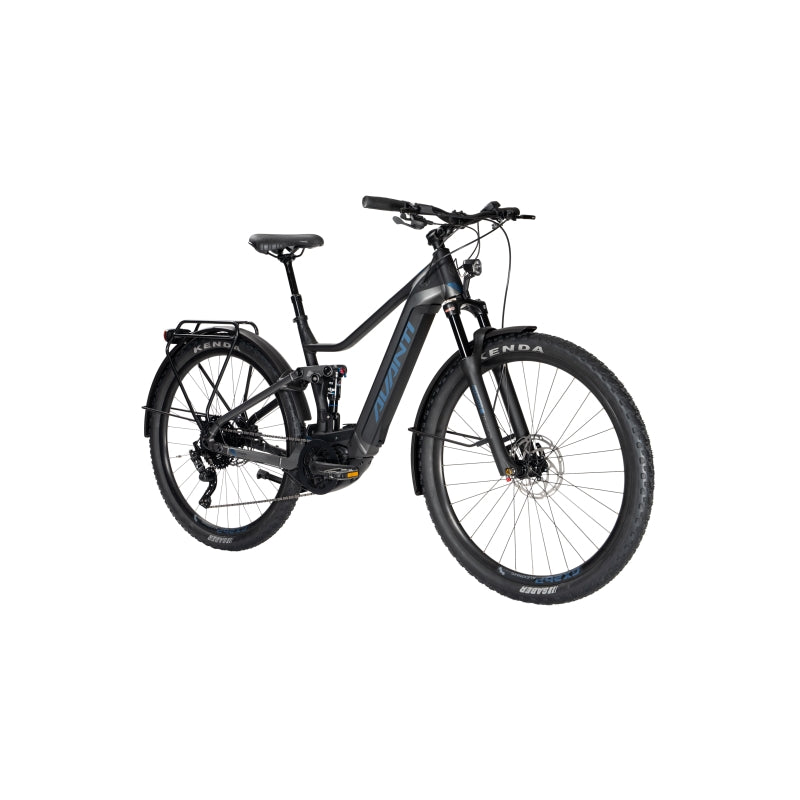

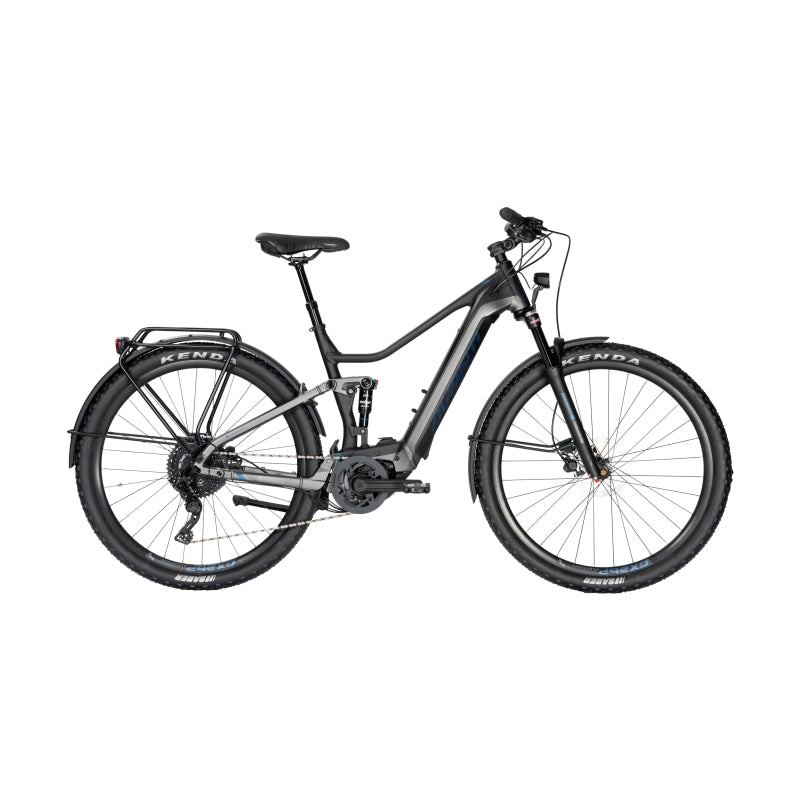

Avanti
Avanti Explorer-e DS2
Avanti Explorer-e DS2
Regular price
$8,499.99 NZD
Regular price
Sale price
$8,499.99 NZD
Taxes included.
Quantity
Couldn't load pickup availability
Adventure trekking just got more powerful, longer range and a whole lot more comfortable. Offering a powerful G4 Bosch Performance Line CX motor, long-range 625Wh internal (range-extendable*) battery and 100/80mm of plush and air-tuneable suspension, the Explorer DS2 will expand your horizons. With E-bike specific 11sp Microshift components, Tektro hydraulic brakes and a dropper post, it's got 'Explorer' written all over it - literally!
(*) Range Extender available separately
AT A GLANCE
- FRAME: AL-6061 Ultralight , 80mm travel, tapered headtube, PowerTube internal battery
- SUSPENSION: Front: Suntour Mobie Air, 100 mm, thru-axle, remote lockout - Rear: Suntour UNAir, 80 mm, lockout
- COMPONENTS: Bosch Performance Line CX Motor, 625Wh PowerTube battery, 11sp Microshift XCD, Tektro hydraulic brakes
- WHEELS: Formula alloy thru-axle hubs with Alex Gravel rims and Kenda fast rolling MTB tyres
WHAT'S NEW
- Microshift 11sp with e-specific cassette
- Tetro hydraulic brakes
KEY FEATURES
- Bosch's Gen 4 Performance Line CX motor for smooth power assisted riding up to 32kph for NZ or 25kph for AU
- Bosch full internal 625Wh Powertube battery is light, smoothly integrated into the frame and provides huge range for all-day adventures
- German-engineered light and tough 80mm travel frame with tuneable air suspension that can be locked out on smooth terrain
- Microshift's excellent 11 speed components, powerful hydraulic disc brakes and a dropper post for easy mounting/dismounting
- Custom alloy Racktime rear rack with integrated Hebie full fenders, front and rear lights and a robust kickstand
(*) Range Extender available separately
AT A GLANCE
- FRAME: AL-6061 Ultralight , 80mm travel, tapered headtube, PowerTube internal battery
- SUSPENSION: Front: Suntour Mobie Air, 100 mm, thru-axle, remote lockout - Rear: Suntour UNAir, 80 mm, lockout
- COMPONENTS: Bosch Performance Line CX Motor, 625Wh PowerTube battery, 11sp Microshift XCD, Tektro hydraulic brakes
- WHEELS: Formula alloy thru-axle hubs with Alex Gravel rims and Kenda fast rolling MTB tyres
WHAT'S NEW
- Microshift 11sp with e-specific cassette
- Tetro hydraulic brakes
KEY FEATURES
- Bosch's Gen 4 Performance Line CX motor for smooth power assisted riding up to 32kph for NZ or 25kph for AU
- Bosch full internal 625Wh Powertube battery is light, smoothly integrated into the frame and provides huge range for all-day adventures
- German-engineered light and tough 80mm travel frame with tuneable air suspension that can be locked out on smooth terrain
- Microshift's excellent 11 speed components, powerful hydraulic disc brakes and a dropper post for easy mounting/dismounting
- Custom alloy Racktime rear rack with integrated Hebie full fenders, front and rear lights and a robust kickstand
Technical Specifications
Components
| GRIPS | Dual density Ergo |
| HANDLEBAR | Alloy riser bar, 15 deg sweep |
| HEADSET | Integrated Threadless 1 1/8th - 1.5" |
| PEDALS | VP retro with alloy body and rubber gripper |
| REAR HUB | Formula Alloy Centrelock Cassette 148x12mm thru axle |
| SADDLE | Selle Royal Lookin comfort with RoyalGel padding |
| SEATPOST | Syncros Duncan Dropper 31.6mm with internal cable routing |
| STEM | Alloy Ahead adjustable rise |
Drivetrain
| BRAKE LEVERS | Tektro M275 Hydraulic |
| BRAKES | Tektro M275 Hydraulic, 180mm Centrelock rotors |
| CASSETTE | Microshift E-cassette, 11-46T, 11sp |
| CHAIN | KMC E11 E-bike chain |
| CHAINRING | 38T Narrow/Wide |
| CRANKSET | FSA Gen 4 Bosch ISIS, 38T |
| REAR DERAILLEUR | Microshift XCD 11sp with Clutch |
| SHIFTERS | Microshift XCD 11sp Trail trigger w/Sealed Bearing |
E-bike
| BATTERY | Bosch Powertube 625Wh Internal |
| DISPLAY | Bosch Purion |
| DRIVE UNIT | Bosch Gen 4 Performance Line CX, 85Nm, 250W, 32kph for NZ, 25kph for AU |
Frame
| FORK | Suntour Mobie 25 LOR Air, Taper, 100 mm, 15x100 mm axle, remote lockout |
| FRAME | AL-6061 Ultralight tubing, 80mm travel, cartridge bearing pivots, tapered headtube, PowerTube internal battery |
| FRONT TRAVEL | 100mm |
| REAR SHOCK | Suntour UNAir R8, 80 mm, lockout |
| REAR TRAVEL | 80mm |
Other
| EXTRAS | Rack, Fender, Kickstand, lights |
Wheels
| RIMS | Alex GX26P Gravel rims, double wall |
| SPOKES | Stainless Steel with Brass Nipples |
| TYRES | Kenda Sabre 29 x 2.2 with AV tube. |
