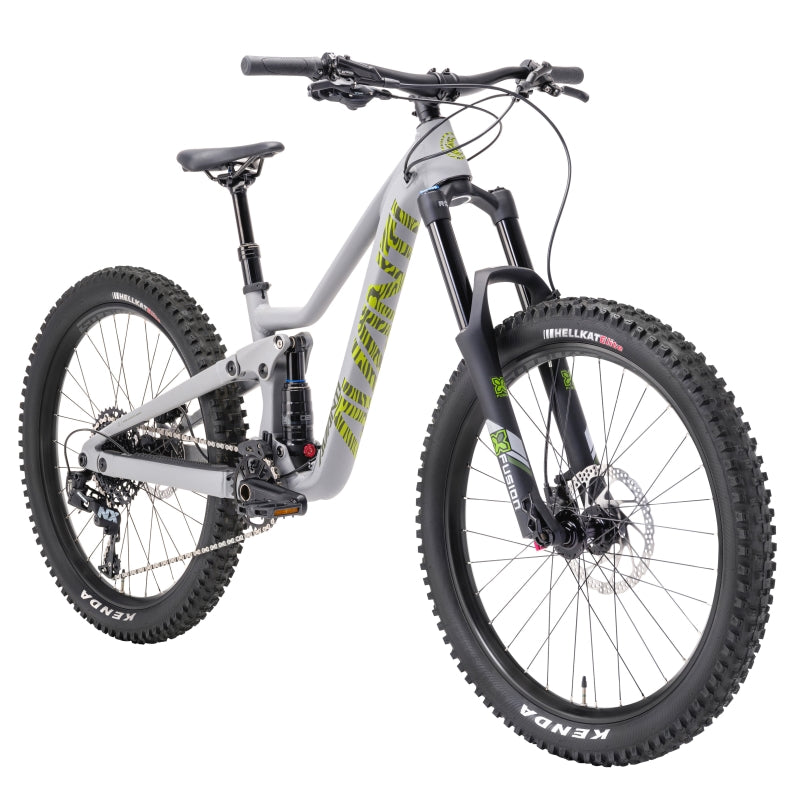

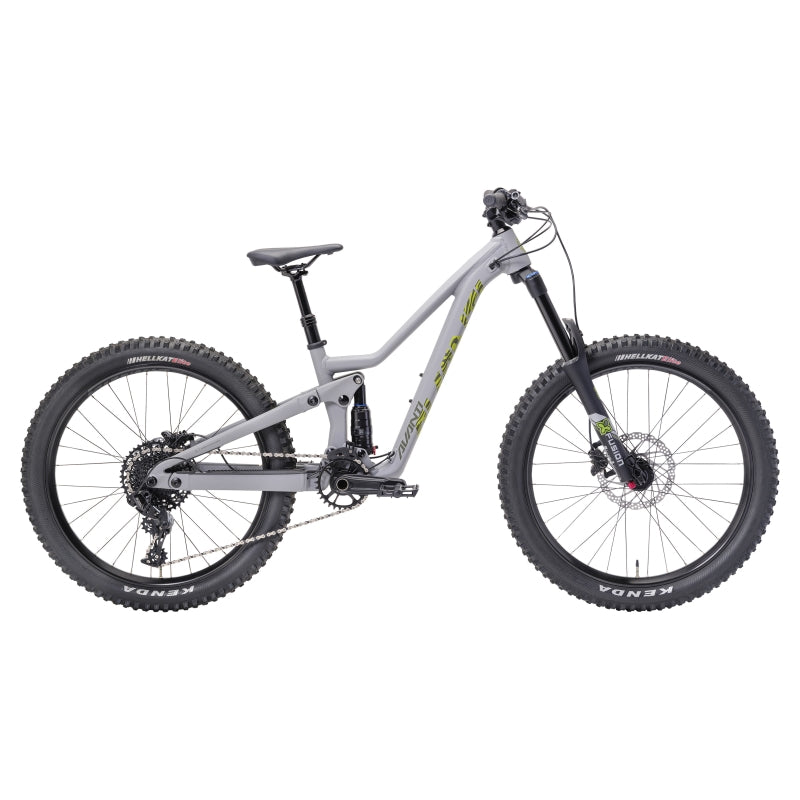

Avanti Hammer Jnr
Avanti Hammer Jnr
Regular price
$3,399.99 NZD
Regular price
Sale price
$3,399.99 NZD
Taxes included.
Quantity
Couldn't load pickup availability
If you're looking for the best quality, dual suspension bike for the young 'pinner', the Hammer Jnr brings the build quality of our Swiss-engineered Hammer adult range, down to the 24" wheel size for groms! And what's even better is the frame and fork are 26" wheel* compatible so the bike can grow with them.
Technical Specifications
Components
| GRIPS / BARTAPE | 19mm grip diameter for small hands |
| HANDLEBAR | Alloy Junior riser 31.8 with 9deg backsweep, 25mmrise |
| HEADSET | Syncros OE Press Fit / Reduce 1.5â€ÂÂ-1 1/8†|
| PEDALS | Kids platform 9/16th |
| SADDLE | Syncros kids |
| SEATPOST | Syncros Duncan remote dropper 80mm travel with kids tune 31.6 |
| STEM | Alloy 31.8, 40mm, 7 degree rise |
Drivetrain
| BOTTOM BRACKET | BSA |
| BRAKES | Shimano MT-501 hydraulic |
| BRAKES ROTOR | 180mm front/160mm rear rotors (6-bolt) |
| CASSETTE | SRAM PG1130 Cassette, 11-42T 11sp |
| CHAIN | KMC X11 |
| CHAINGUIDE | Mr. Control CH MTS-SUT-MEDV1 chain guide |
| CHAINRING | 30T Narrow/Wide |
| CRANKSET | ProWheel DMJ 2pce forged 1270mm alloy cranks, 1x11sp with 30T chainring and chain guide |
| REAR DERAILLEUR | SRAM NX |
| SHIFTERS | SRAM NX 11sp |
Frame
| FORK | X-Fusion, Slant RC Air 140mm, compression & rebound adjust, 24 compatible, kids tune |
| FRAME | AL-6061 Ultralight tubing, 130mm, tapered headtube, 148x12mm thru-axle, UDH hanger, flip-chip for 26 wheel |
| SHOCK | X-Fusion, |
Wheels
| FRONT HUB | Formula DC-71 IS / 15x100mm |
| REAR HUB | Formula DC-3248 IS / Boost 12x148mm, Cassette 30H, 6-bolt |
| RIMS | Syncros DP30 / 32H / 30mm |
| SPOKES | Stainless steel |
| TYRES | Kenda Hellkat K1201 / 60TPI / folding / 24x2.4 |
