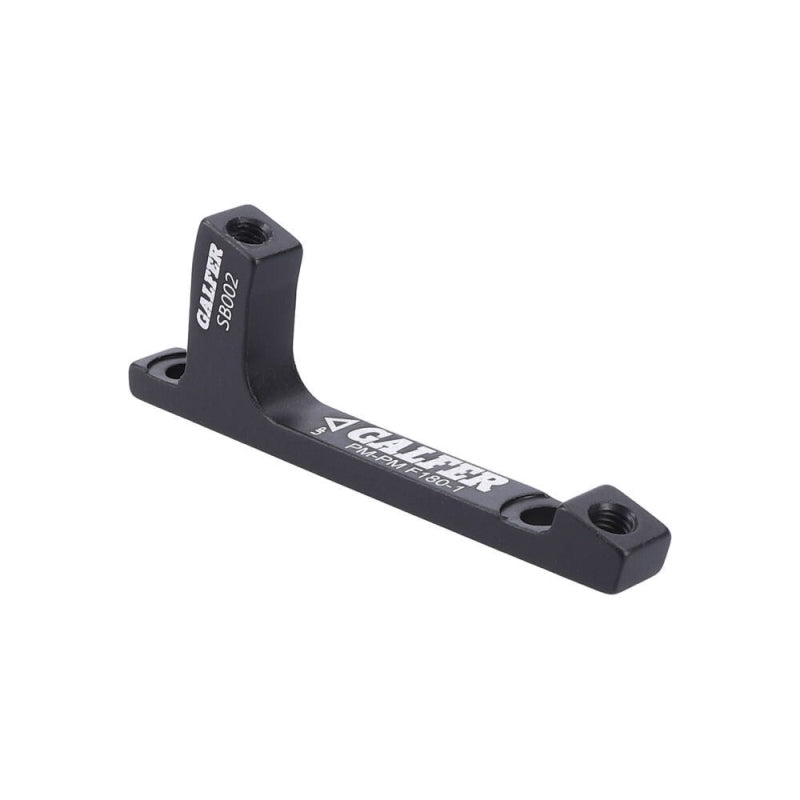

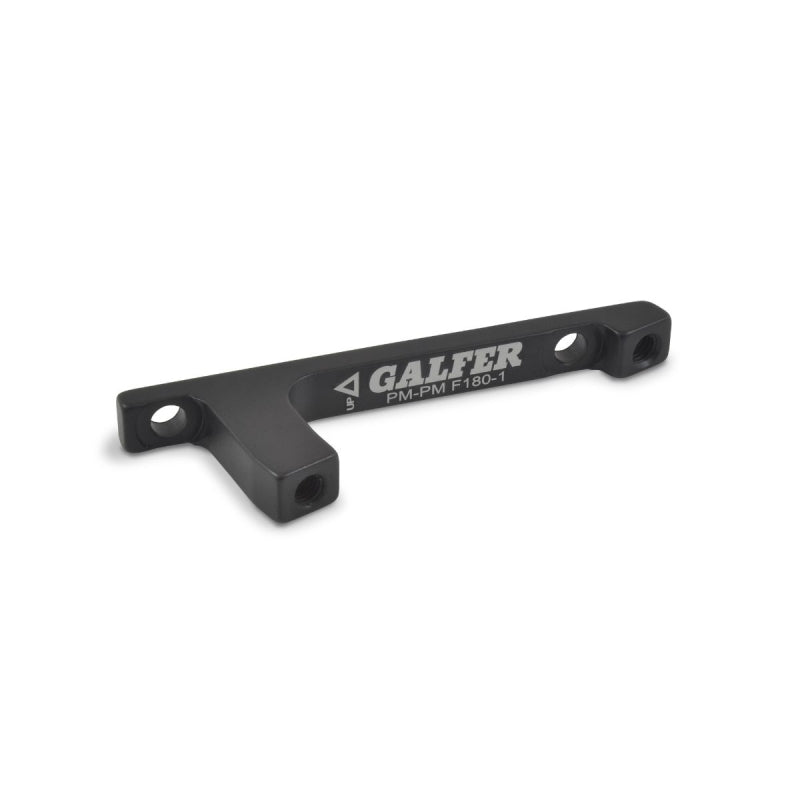

Galfer Post Mount Adaptor + 20MM
Galfer Post Mount Adaptor + 20MM
Regular price
$39.99 NZD
Regular price
Sale price
$39.99 NZD
Taxes included.
Quantity
Couldn't load pickup availability
Galfer adapters to increase caliper mounting height on frames and forks, to suit larger diameter rotors.
Each adapter includes two fastening bolts. The below table shows the conversion from the original frame or fork position, without adapters, to the larger rotor size.
| MODEL | FRONT SIZE (mm) | REAR SIZE (MM) | WEIGHT (g) |
SB001+43mm |
ø160 > ø203ø180 > ø223 |
ø160 > ø203ø180 > ø223 |
21 |
SB002+20mm |
ø160 > ø180ø180 > ø200
|
ø160 > ø180ø180 > ø200 |
22 |
SB003+63mm |
ø160 > ø223 |
ø160 > ø223 |
29 |
SB004+23MM |
ø180 > ø203ø200 > ø223 |
ø180 > ø203ø200 > ø223 |
26 |
SB005FOX 40 & 49 |
ø203 > ø223 |
25 |
!["2025]("https://www.wideopen.co.nz/content/3644p59.jpg" "\"2025")
Technical Specifications
Technical Information
| CALIPER INTERFACE | POST MOUNT (PM) |
| FRAME OR FORK INTERFACE | POST MOUNT 160MM (DEFAULT) & POST MOUNT 180MM & POST MOUNT 200MM |
| POST MOUNT ADAPTER HEIGHT | +20MM |
| ROTOR SIZE | 180MM & 200MM & 220MM |
| POSITION | FRONT & REAR |
