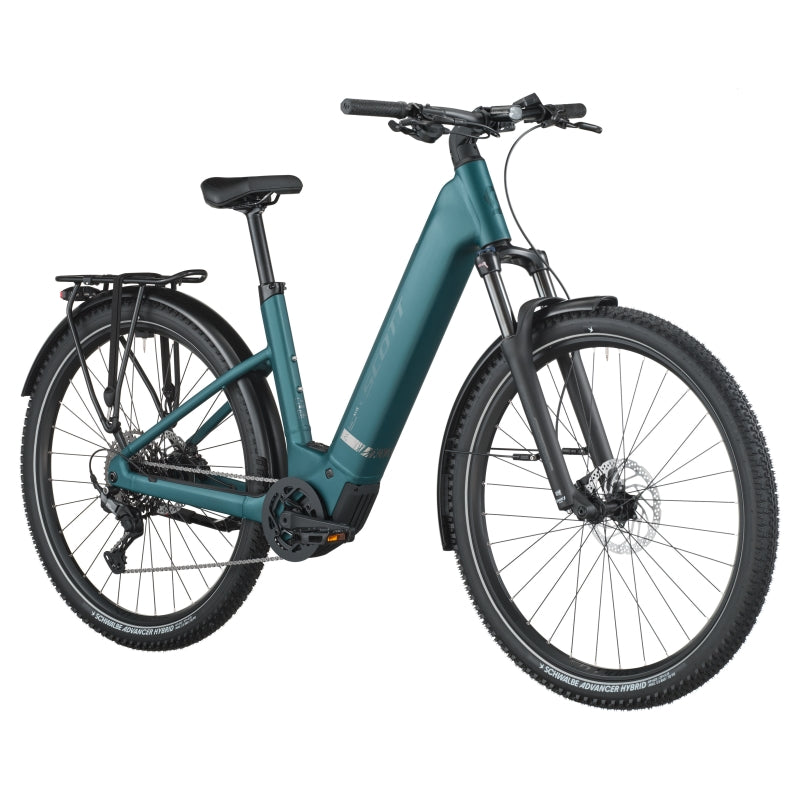

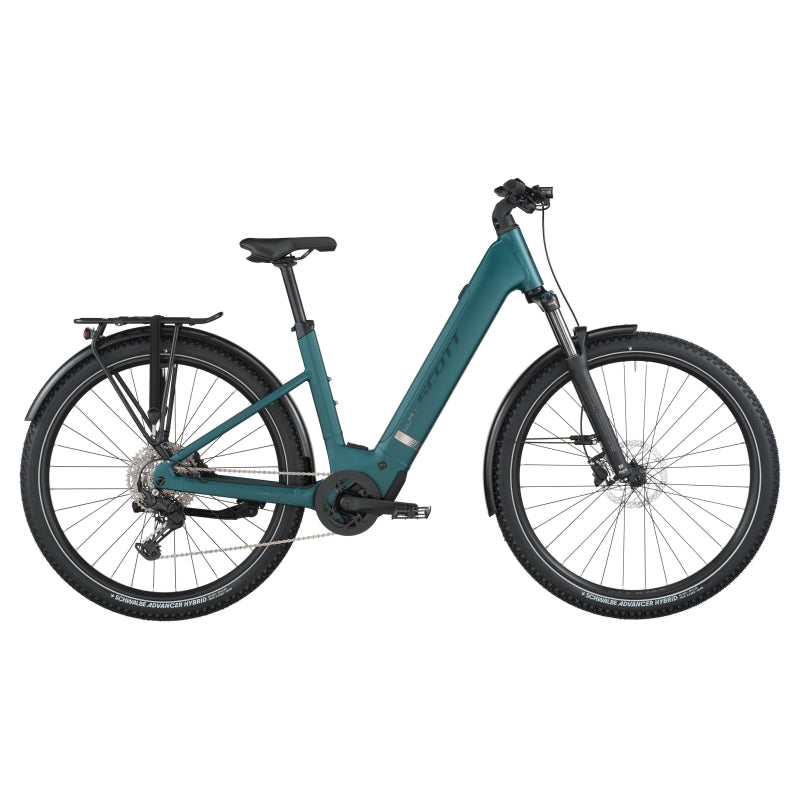

Scott Axis 30 Wave

Scott Axis 30 Wave

Regular price $6,499.99 NZD
Regular price Sale price $6,499.99 NZD
Sale Contact Us
Taxes included. Shipping calculated at checkout.
Colour
Size
Quantity
The perfect bridge between urban cruising and mountain biking.
The SCOTT AXIS eRIDE is equipped with the Bosch Performance motor and a 540Wh battery, perfect for weekend explorations in the outdoors. Wanna bring the kids and dogs with you? No problem. Thanks to the new Syncros Heavy Duty rack that can carry up to 27kg, and the new Syncros Thru-Axle enabling you to tow cargo trailers, you can load up the Axis with everything you need to make the most of your rides.
Axis comes in two sleek frame shapes, with the Wave allowing for a lower standover height. Being step-through, it fits more riders, making it not only the best design for mounting and dismounting the bike, but also a go-to for families who want to share a bike between multiple riders.
As comfy as you'd like. Ride Axis.

Key Features

- Axis eRIDE Alloy Frame
- Bosch Performance, PT540 SmartSystem Engine System
- Suntour 120mm Fork
- Shimano CUES 10 Speed Drivetrain
- Shimano Disc Brakes
- Syncros bike trailer adapter Lezyne front / Syncros rear-rack integrated rear Lights / Curana alloy fenders
- Racktime carrier Snap It 2.0 compatible, 27KG


Please note that bike specifications are subject to change without prior notice.

Technical Specifications

Components

GRIPS Syncros Lock On Grip
HANDLEBAR Syncros 3.0 720mm 31.8mm Backsweep 9 12mm rise
HEADSET Acros 1.5 - 1.5 semi integ. OD 50/61mm ID 44/55mm
PEDALS VP VPE-506
RACK Racktime Micro Rack SnapIt 2.0 25KG
SADDLE Syncros Capilano
SEATPOST Syncros 3.0 31.6mm
STEM Syncros with front Light mount

Drivetrain

BRAKES Shimano BR-MT200 Disc Brakes
BRAKES ROTOR Front: SM-RT30 CL 180mm Rear: RT-EM300 CL 180mm
CASSETTE Shimano CS-LG40010 11-48T 10 Speed
CHAIN Shimano LG500
CHAINRING Miranda 36T w/Chain Guard
CRANKSET FSA CK-220 165mm
REAR DERAILLEUR Shimano CUES RD-U6000GS 10 Speed
SHIFTERS Shimano SL-U600010RC

E-bike

DRIVE UNIT Bosch Performance Line (BDU346Y) EU: 25kmh
E MOTOR BATTERY PowerTube 540Wh
E MOTOR CHARGER 2A Charger
E MOTOR DISPLAY Bosch Purion 200
LIGHTS Front Lezyne Hecto E65 Rear Super Bright Lezyne Light

Frame

FORK SR Suntour XCM34 Coil Tapered 15x110 TA 120mm Travel
FRAME Alloy S-XL=29 6061 Alloy custom butted tubing Top extraction battery UDH Interface 12x148mm with 52mm Chainline

Other

APPROX. WEIGHT 29.7 kg
EXTRAS Curana alloy profile Fender Ursus Kickstand

Wheels

FRONT HUB Shimano HBTC50015BB 15x110mm
REAR HUB Shimano FHTC500HMBB 148x12mm
RIMS Syncros X18 Disc
SPOKES Stainless Black
TYRES Schwalbe Advancer 60-622 Wired
