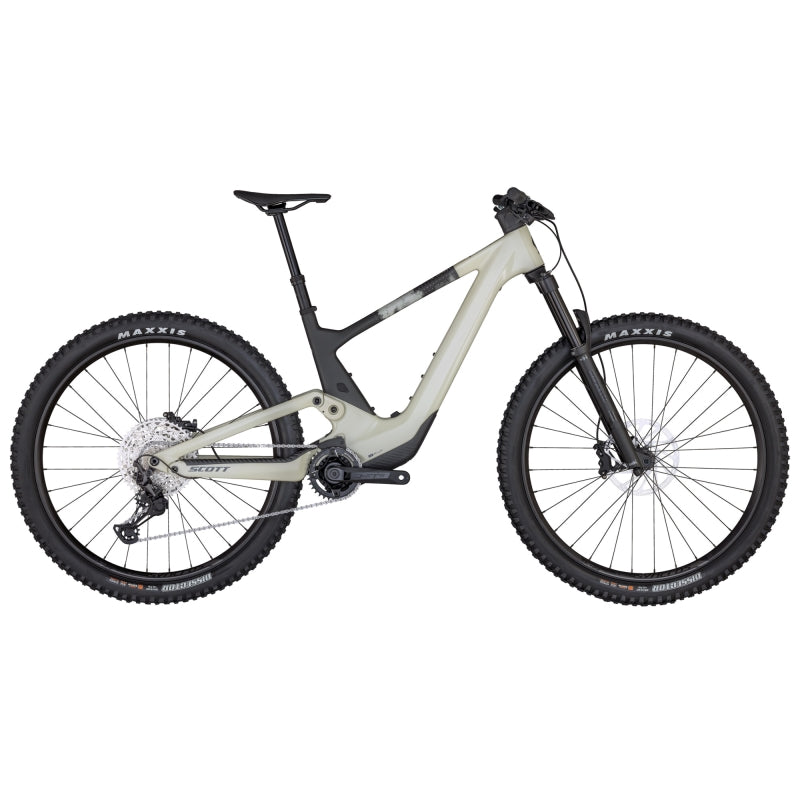

Scott Voltage Eride 920

Technical Specifications

Components

GRIPS	Syncros Endurance lock-on grips
HANDLEBAR	Syncros Hixon 2.0 Alloy 6061 D.B. 12mm Rise / back sweep 8 ' / 780mm
HEADSET	Syncros - Acros Angle adjust & Cable Routing HS System Stainless head angle adjustment ZS56/28.6 ZS56/40 MTB
SADDLE	Syncros Tofino 2.0 Regular
SEATPOST	Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm
STEM	Syncros AM 2.0 Syncros Cable Integration System 4" rise / 6061 Alloy / 31.8mm / 1 1/8"
SUSPENSION CONTROLS	SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes

Drivetrain

BRAKES	SRAM DB8 4 Piston Disc
BRAKES ROTOR	SRAM Centerline CL Rotors F&R 200mm
CASSETTE	Shimano CS-M6100 / 10-51 T
CHAIN	Shimano CN-M6100
CHAINGUIDE	e*thirteen / e*spec Slider
CHAINRING	Scott custom spider / FSA 12Speed 34T chainring
CRANKSET	FSA Alloy crankset / 175mm / 34T
REAR GEAR	Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed
SHIFTERS	Shimano Deore SL-M6100-IR / Rapidfire Plus I-spec EV clamp

E-bike

E MOTOR	TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
E MOTOR BATTERY	TQ Internal 360Wh
E MOTOR CHARGER	TQ 100-240V-4A
E MOTOR DISPLAY	TQ HPR Bluetooth / ANT+ / Dedicated Smartphone app

Frame

FORK	Marzocchi Z2 Air Rail 3 modes / 15x110mm QR axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 150mm travel
FRAME	Carbon HMF Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline Range Extender Ready
FRONT TRAVEL	Front: 150mm
REAR TRAVEL	Rear: 155mm
SHOCK	FOX Float Custom EVOL Performace Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 155mm / T185X55mm

Other

APPROX. WEIGHT

19.3 (with tubes)

Wheels

FRONT HUB	Formula CL-811 / 15x110mm
FRONT TYRE	Maxxis Dissector / 29x2.6" / 60TPI Wire Bead EXO Dual
REAR HUB	Formula CL-148M / 12x148mm
RIMS	Syncros X-30S / 32H / 30mm / Sleeve Joint Tubeless ready
SPOKES	Stainless Black 15G / 1.8mm
TYRES	Maxxis Dissector / 29x2.6" / 60TPI Wire Bead EXO Dual
