Trek

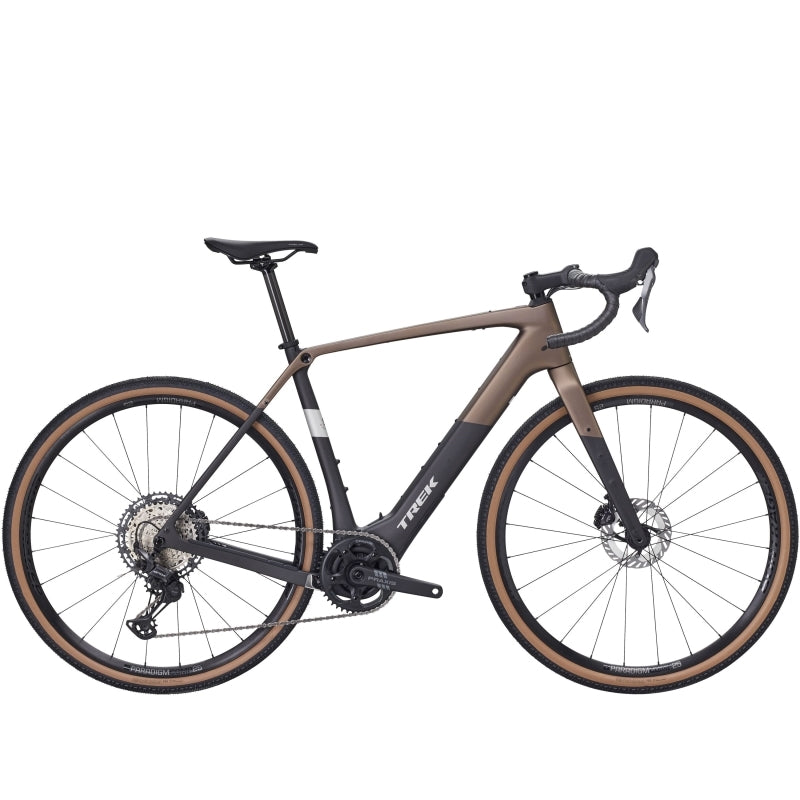

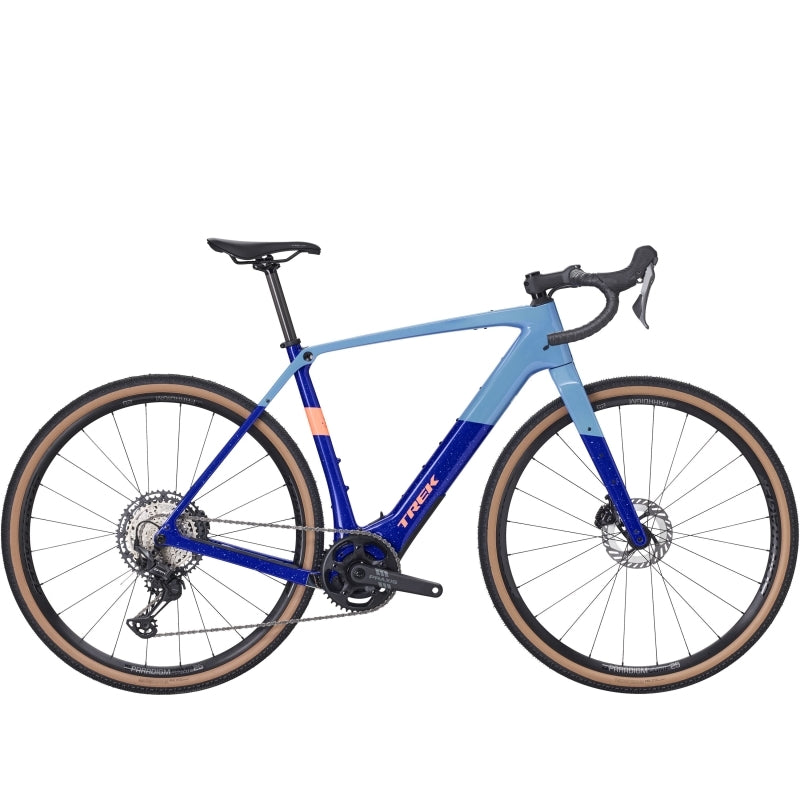

Trek Checkpoint+ SL 5
Trek Checkpoint+ SL 5
Couldn't load pickup availability
Powerful and discreet e-system
The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet and offers a natural-feeling assist up to 28 mph (45 kph in New Zealand) with 50 miles of range (in Eco mode). Plus, choose how much boost you get and when you get it with three assist modes.
Optional Range Extender
Explore even further with an optional 160 Wh Range Extender that fits neatly in your bottle cage and gives you an extra 44% more range.
Road-smoothing IsoSpeed
IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger longer.
Relaxed Gravel Endurance geometry
Confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures.
Big ol' tyre clearance
Room for tyres of up to 50 mm wide (as measured) lets you roll right over the big stuff.
Mounts to haul it all
Carry everything you need with mounts on the frame and fork for front and rear racks, mudguards and Adventure Frame and Triangle Bags. Plus, the Checkpoint+ was designed to fit extra hydration in additon to all your bags.
Technical Specifications
Components
| BARTAPE | Bontrager Supertack Perf tape |
| HANDLEBAR | Size: XS, S Bontrager Elite Gravel, alloy, 40 cm width Size: M, ML Bontrager Elite Gravel, alloy, 42 cm width Size: L Bontrager Elite Gravel, alloy, 44 cm width Size: XL Bontrager Elite Gravel, alloy, 46 cm width |
| SADDLE | Verse Short Comp, steel rails, 145 mm width |
| SEATPOST | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| STEM | Size: XS Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: S, M Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Size: ML, L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length |
Drivetrain
| BRAKE LEVERS | Shimano GRX RX820, 12-speed |
| BRAKES | Shimano GRX RX820 |
| BRAKES ROTOR | Shimano CL800, CentreLock, 160 mm |
| CASSETTE | Shimano XT M8100, 10-51, 12-speed |
| CHAIN | Shimano XT M8100, 12-speed |
| CRANKSET | Size: XS, S Praxis Alloy, 165 mm length Size: M, ML Praxis Alloy, 170 mm length Size: L, XL Praxis Alloy, 172.5 mm length |
| REAR DERAILLEUR | Shimano GRX RX822, 51T max cog |
| SHIFTERS | Shimano GRX RX820, 12-speed |
E-bike
| DISPLAY/CONTROLLER | TQ LED display with Bluetooth & ANT+ connectivity |
| E MOTOR | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| E MOTOR BATTERY | TQ 360Wh |
| E MOTOR CHARGER | TQ 4A charger |
Frame
| FORK | Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle |
| FRAME | 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat-mount disc, mudguard mounts, UDH, 142x12 mm chamfered thru axle |
Other
| APPROX. WEIGHT | ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes) |
Wheels
| FRONT WHEEL | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
| REAR WHEEL | Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle |
| TYRES | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
