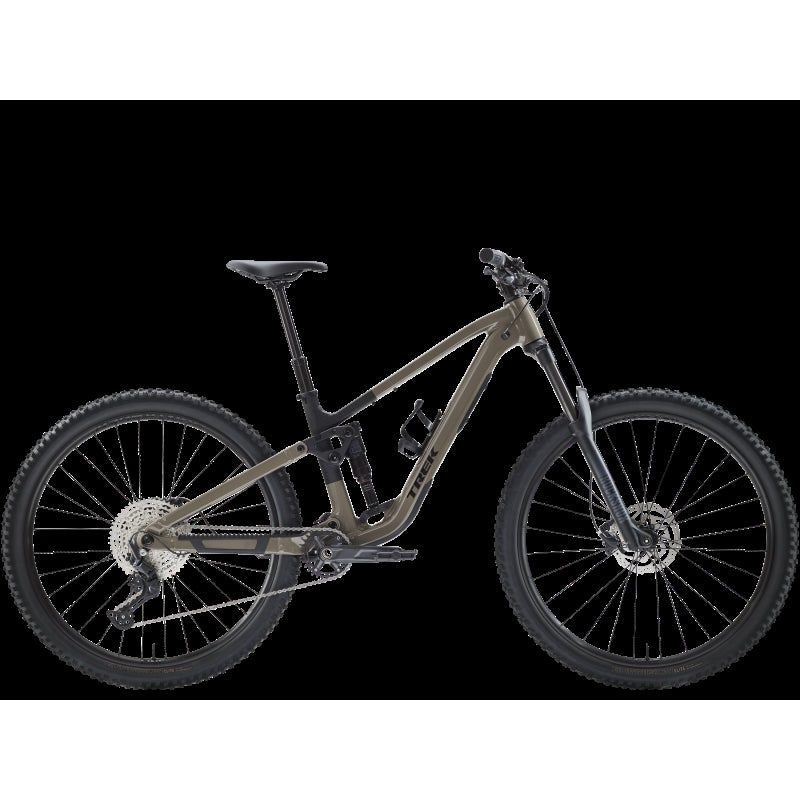

Trek Fuel EX 5
Trek Fuel EX 5
Couldn't load pickup availability
Adapt, rip, repeat
Only you can define your perfect trail bike - that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Adjustable leverage rate
Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.
Zero stack integrated headset
With a ZS standard headset, you've got loads of options for aftermarket upgrades, including angle adjust or anodised colours.
Storage and accessory mounts
Stash ride essentials with in-frame storage on all Fuel models - both carbon and alloy. Plus, top tube accessory mounts let you load up even more.
Fresh frame design
The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags and more.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Technical Specifications
Components
| GRIPS | Trek Line Comp, nylon lock-on |
| HANDLEBAR | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| HEADSET | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| SADDLE | Bontrager Verse Short, stainless steel rails |
| SEATPOST | Size: S TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm Size: M, L, XL TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
| STEM | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
Drivetrain
| BOTTOM BRACKET | Shimano BB-MT501 BSA |
| BRAKES | Shimano hydraulic disc, MT201 lever, MT200 calliper |
| BRAKES ROTOR | Shimano RT10, CenterLock, 180 mm |
| CASSETTE | Shimano M6200, 10-51, 12-speed |
| CHAIN | Shimano Deore M6100, 12-speed |
| CRANKSET | Shimano MT520 Deore, 30T ring, 55mm chainline, 165mm length |
| REAR DERAILLEUR | Shimano Deore M6200, long cage |
| SHIFTERS | Shimano Deore M6200 |
Frame
| FORK | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
| FRAME | Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| FRAME MATERIAL | Alloy |
| FRONT TRAVEL | 150mm |
| REAR SHOCK | RockShox Deluxe Select, 205mm x 60mm |
| REAR TRAVEL | 145mm-160mm |
Other
| APPROX. WEIGHT | M - 16.88 kg / 37.22 lbs (with TLR sealant, no tubes) |
Wheels
| FRONT HUB | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| REAR HUB | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| RIMS | Size: S, M, L, XL Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve Size: S, M, L, XL Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
| TYRES | Size: S, M, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
