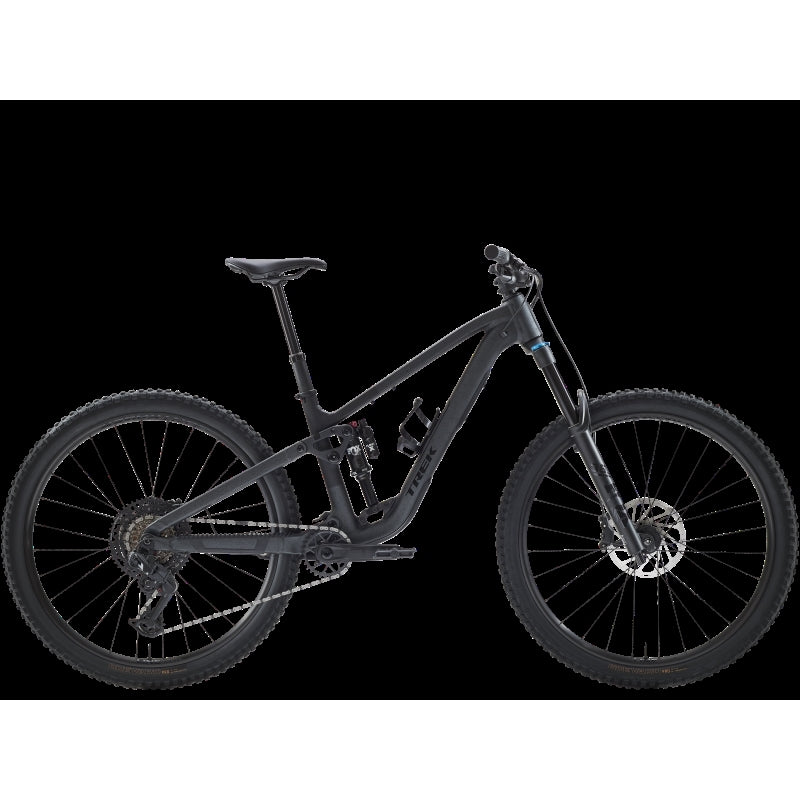

Trek Fuel EX 8
Trek Fuel EX 8
Couldn't load pickup availability
Adapt, rip, repeat
Only you can define your perfect trail bike - that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.
Adjustable leverage rate
Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.
Zero stack integrated headset
With a ZS standard headset, you've got loads of options for aftermarket upgrades, including angle adjust or anodised colours.
Storage and accessory mounts
Stash ride essentials with in-frame storage on all Fuel models - both carbon and alloy. Plus, top tube accessory mounts let you load up even more.
Fresh frame design
The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags and more.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Technical Specifications
Components
| GRIPS | Trek Line Comp, nylon lock-on |
| HANDLEBAR | Race Face Aeffect, alloy, 35 mm, 40 mm rise, 800 mm width |
| HEADSET | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| SADDLE | Verse Short Comp, steel rails, 145 mm width |
| SEATPOST | Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length Size: M Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length Size: L, XL Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
| STEM | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
Drivetrain
| BOTTOM BRACKET | SRAM DUB MTB Wide, 73 m, BSA threaded |
| BRAKES | SRAM DB 8 4-piston hydraulic disc |
| BRAKES ROTOR | Size: S, M, L, XL SRAM CenterLine 2.0, 6-bolt, 200 mm Size: S, M, L, XL SRAM CenterLine 2.0, 6-bolt, 180 mm |
| CASSETTE | SRAM Eagle XS-1270, T-Type,10-52, 12-speed |
| CHAIN | SRAM Eagle 70, T-Type, 12-speed |
| CRANKSET | SRAM Eagle 70, DUB, 30T, T-Type, 55mm chainline, 165mm length |
| REAR DERAILLEUR | SRAM Eagle 70, T-Type |
| SHIFTERS | SRAM Eagle 70, 12-speed |
Frame
| FORK | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel |
| FRAME | Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm |
| FRAME MATERIAL | Alloy |
| FRONT TRAVEL | 150mm |
| REAR SHOCK | Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
| REAR TRAVEL | 145mm - 160mm |
Other
| APPROX. WEIGHT | M - 16.58 kg / 36.56 lbs (with TLR sealant, no tubes) |
| EXTRAS | Bontrager BITS Internal Frame Storage Bag |
Wheels
| FRONT HUB | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| REAR HUB | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle |
| RIMS | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
| TYRES | Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
