Trek Madone SL 6 Gen 8
Trek Madone SL 6 Gen 8
Regular price
$7,499.00 NZD
Regular price
Sale price
$7,499.00 NZD
Taxes included.
Quantity
Couldn't load pickup availability

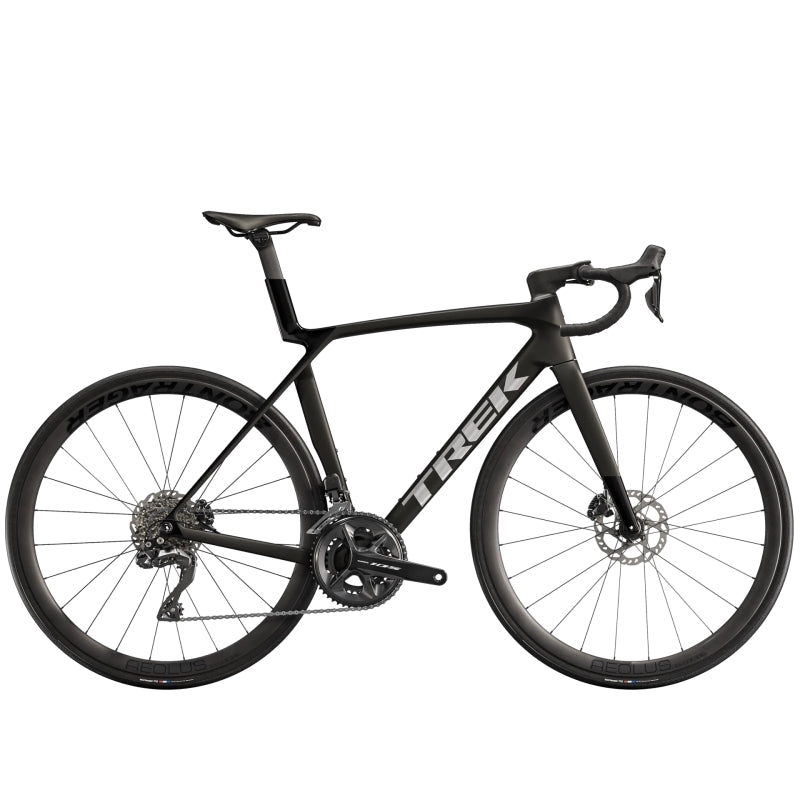

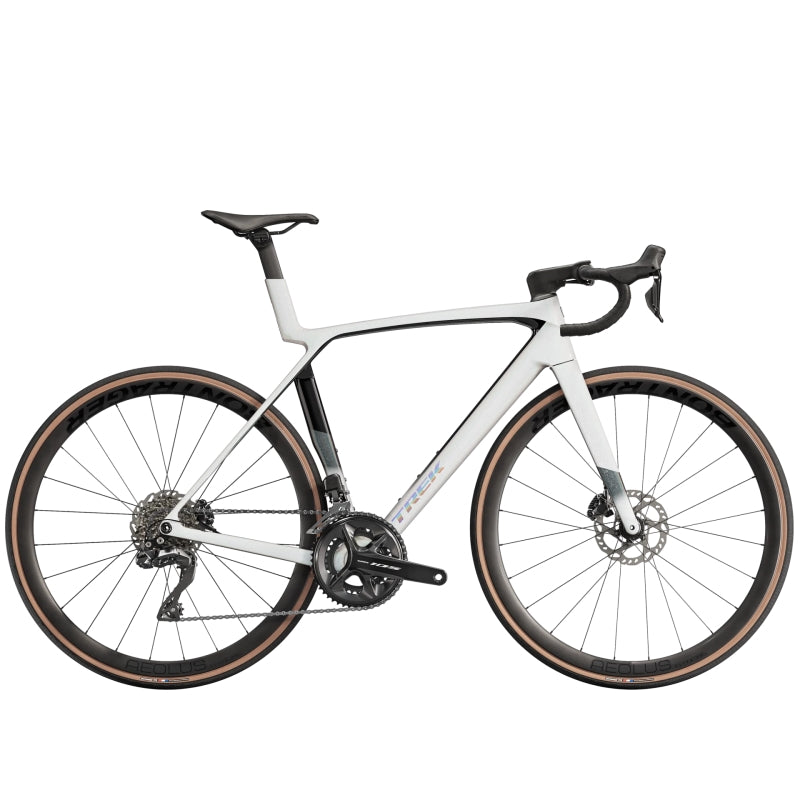

The Madone SL 6 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. It's built to race with geometry that keeps you comfortable on the climbs and perched for the attack. A Shimano 105 Di2 electronic group set keeps the price down without sacrificing lightning-fast electronic shifting. Plus, it's topped off with carbon wheels for extra lightweight performance.
Technical Specifications
Components
| BARTAPE | Trek EcoTack, black |
| HANDLEBAR | XS Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width Size: S, M Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width Size: ML, L Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width Size: XL Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
| SADDLE | Size: XS, S Bontrager Aeolus Comp, steel rails, 155 mm width Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145 mm width |
| SEATPOST | Size: XS, S, M, XL Madone aero carbon seat post, 0 mm offset, short length Size: ML, L Madone aero carbon seat post, 0 mm offset, long length |
| STEM | XS Trek RCS Pro, -7-degree, 80 mm length Size: S, M Trek RCS Pro, -7-degree, 90 mm length Size: ML, L Trek RCS Pro, -7-degree, 100 mm length Size: XL Trek RCS Pro, -7-degree, 110 mm length |
Drivetrain
| BOTTOM BRACKET | Praxis, T47 threaded, internal bearing |
| BRAKE LEVERS | Shimano 105 R7170 |
| BRAKES ROTOR | Shimano RT70, CentreLock, 160 mm |
| CASSETTE | Shimano 105 7101, 11-34, 12-speed |
| CHAIN | Shimano SLX M7100, 12-speed |
| CRANKSET | Size: XS, S Shimano 105 R7100, 50/34, 165 mm length Size: M Shimano 105 R7100, 50/34, 170 mm length Size: ML, L Shimano 105 R7100, 50/34, 172.5 mm length Size: XL Shimano 105 R7100, 50/34, 175 mm length |
| FRONT DERAILLEUR | Shimano 105 R7150 Di2, braze-on, down swing |
| REAR DERAILLEUR | Shimano 105 R7150 Di2, 36T max cog |
| SHIFTERS | Shimano 105 R7170 Di2, 12-speed |
Frame
| FORK | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| FRAME | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| FRAME MATERIAL | Carbon |
Other
| APPROX. WEIGHT | ML - 8.16 kg / 17.99 lbs (with TLR sealant, no tubes) |
| EXTRAS | Shimano BT-DN300 Charging cable included |
Wheels
| FRONT WHEEL | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100x12 mm thru axle |
| REAR WHEEL | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, Shimano 11/12-speed freehub, 142x12 mm thru axle |
| TYRES | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm |
