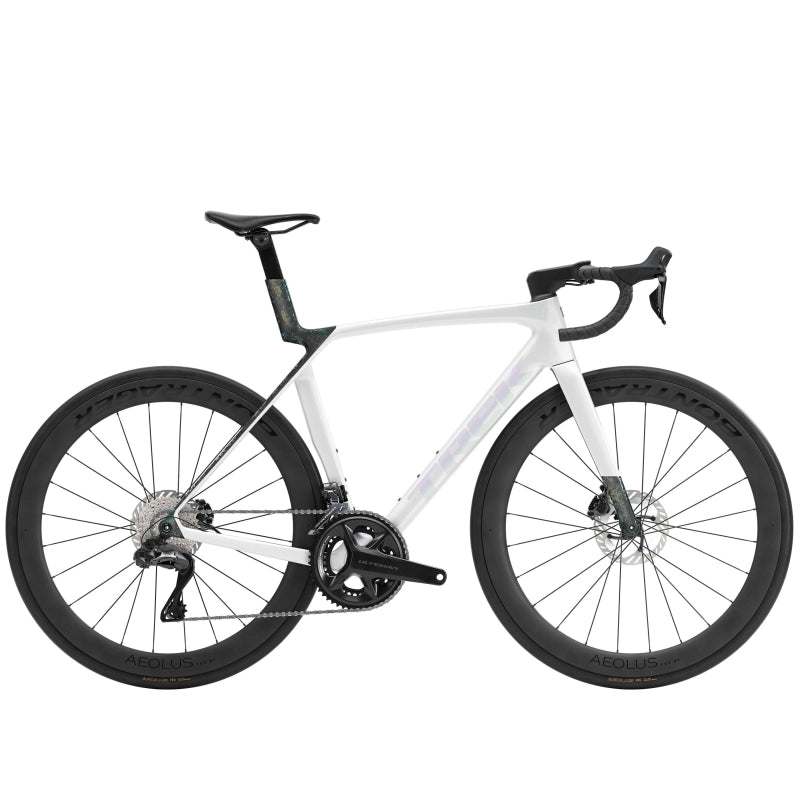

Trek Madone SL 7

The Madone SL 7 Gen 8 is a race-ready road bike built to give you the best of every world. It balances price and performance with a 500 Series OCLV Carbon frame that lets you soar up climbs, while aero geometry cuts drag on descents and IsoFlow keeps you comfortable through the miles. You get a Shimano Ultegra Di2 wireless electronic drivetrain to deliver clean shifts every time, all topped off with carbon wheels, carbon handlebars and a carbon stem for lightweight performance.



Technical Specifications:

• Rim Size: 700C
• Frame Material: Carbon

Detailed Specs

• Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
• Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle
• Wheel (front): Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
• Wheel (rear): Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12 mm thru axle
• Tires: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
• Tire size (max): 32 mm (as measured, see manual for details)
• Tire Size: 700x28c
• Tire Part: Bontrager TLR sealant, 180 ml/6 oz
• Skewer (front): Bontrager Switch chamfered thru axle
• Skewer (rear): Bontrager Switch chamfered thru axle, removable lever
• Shifters: Shimano Ultegra R8170 Di2, 12-speed // Shimano Ultegra R8170 Di2, 12-speed
• Front Derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
• Rear Derailleur: Shimano Ultegra R8150 Di2, 34T max cog
• Crank: Shimano Ultegra R8100, 50/34, 165 mm length
• Bottom Bracket: Praxis, T47 threaded, internal bearing
• Cassette: Shimano Ultegra R8101, 11-34, 12-speed
• Chain: Shimano Ultegra/XT M8100, 12-speed
• Chainring (Max): 1x: 54T, 2x: 56/43
• Rotor size: Max brake rotor sizes: 180 mm front, 160 mm rear
• Brake Rotor: Shimano CL800, CentreLock, 160 mm
• Saddle: Bontrager Aeolus Elite, austenite rails, 145 mm width // Bontrager Aeolus Elite, austenite rails, 145 mm width
• Seatpost: Madone aero carbon seat post, 0 mm offset, short length
• Handlebar: Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm width
• Stem: Trek RCS Pro, -7-degree, 80 mm length
• Battery: Shimano BT-DN300
• Charger: Charging cable included
• Weight: ML - 7.87 kg / 17.36 lbs (with TLR sealant, no tubes)
• Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
• Shifter Brand: Shimano
• Fork Brand: Trek

Our lightest Madone SL Disc ever
New light and fast aero tube shaping paired with light-yet-economical 500 Series OCLV Carbon makes Gen 8 our lightest Madone SL Disc f/s ever and the ideal climbing bike.
Redefines what fast looks like
Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness that climbers crave. Plus, the bikes entire rider system was meticulously designed and rigorously tested to be faster everywhere.
80% more vertically compliant IsoFlow
We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger for longer.
Rooted in racing
The Madone SL was informed by feedback from Lidl-Trek's fastest sprinters and climbers.
Adjustable aero cockpit
The Madone Gen 8 features hoods that are narrower than the drops so you can adjust your positioning to prioritise aerodynamics or power. Plus, the two-piece design lets you quickly and easily dial in your fit.
Add-on aero bottles to make your whole bike faster
The add-on RSL Aero Bottles and Cages were designed with Madone Full System Foil aero shapes to make the whole rider system even faster.
