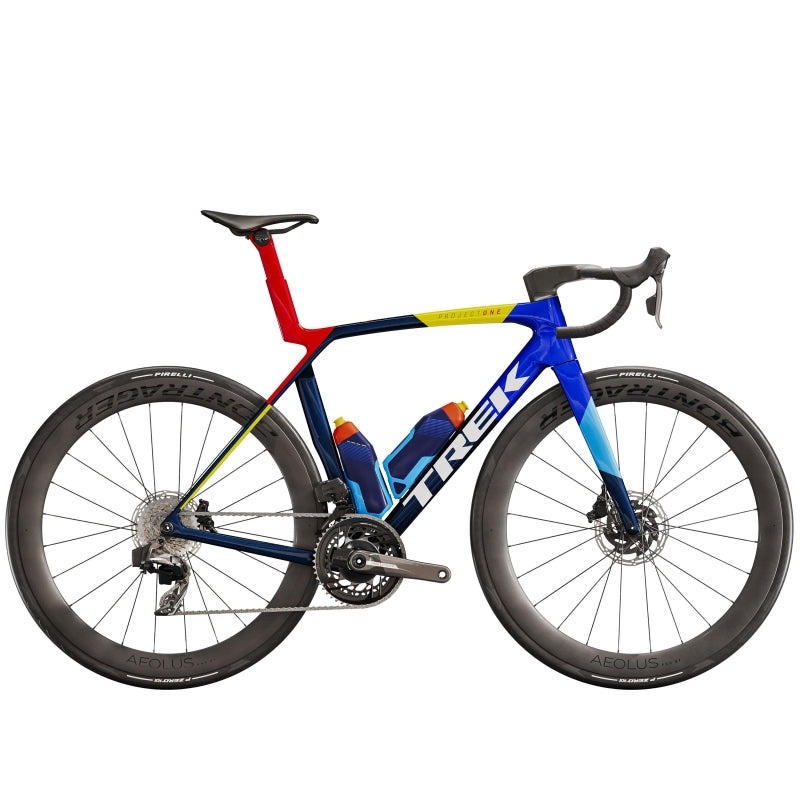

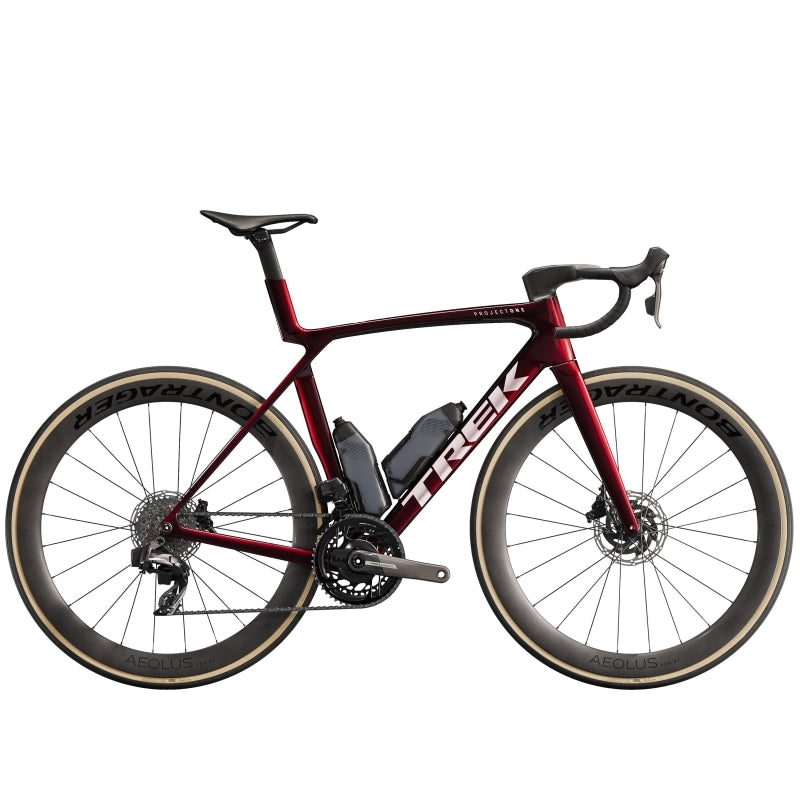

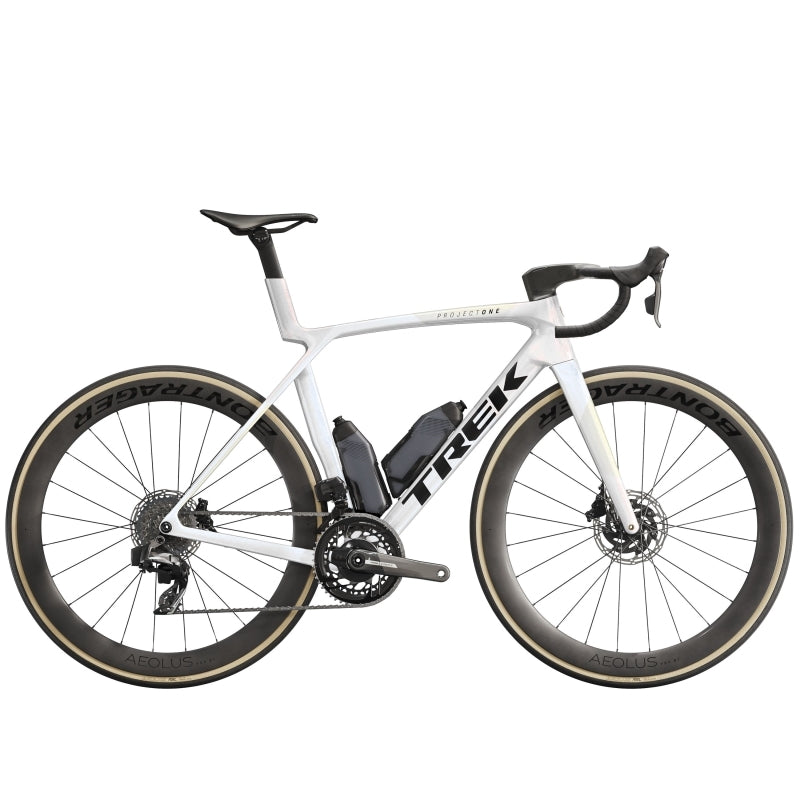

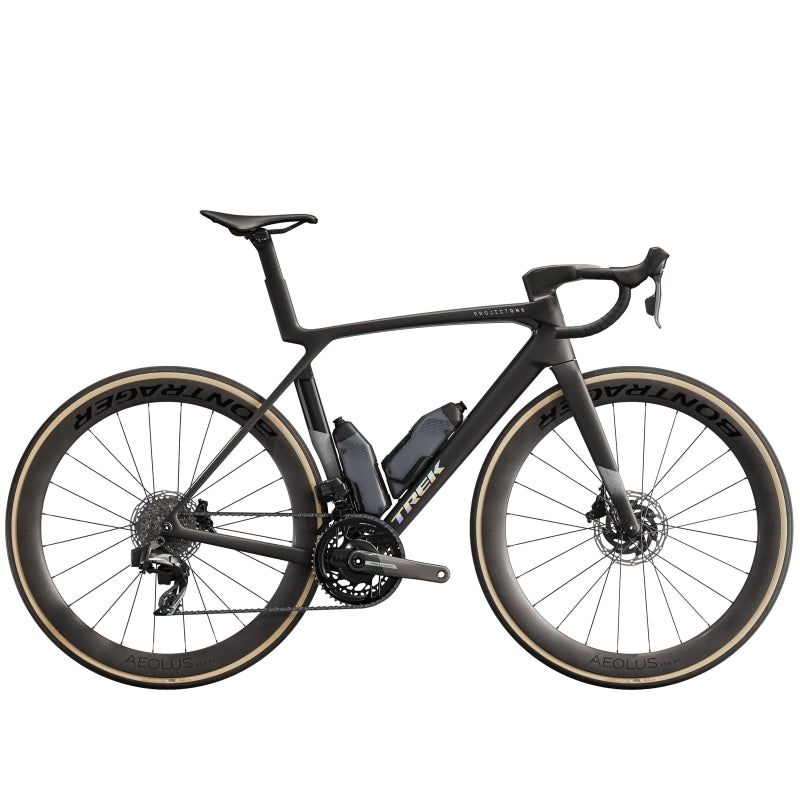

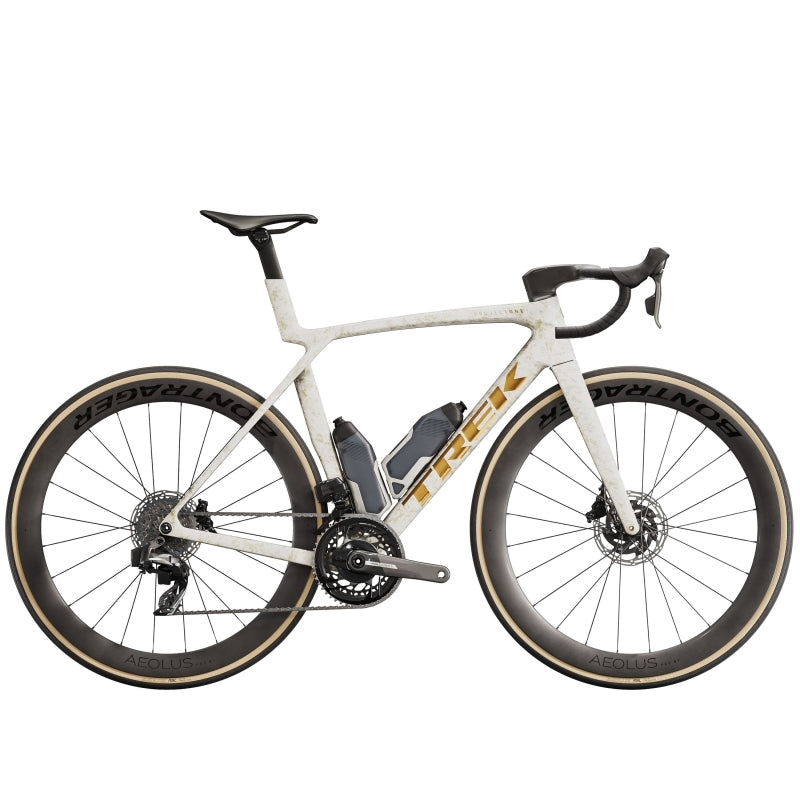

The Madone SLR 7 AXS Gen 8 is an aero, featherlight road bike that's built to race. Its 900 Series OCLV Carbon frame keeps the weight way down while delivering aerodynamic gains and IsoFlow technology means you don't have to sacrifice comfort for speed. It comes race-ready, with a wireless 2x12 SRAM Force eTap AXS group set with power meter cranks, Bontrager Aeolus Pro 51 carbon wheels, a Trek Aero RSL one-piece bar/stem and RSL Aero Bottles and Cages that further reduce drag.
- The Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimise aerodynamics around the whole bike - It's crafted from our highest-level 900 Series OCLV carbon, which is mind-bogglingly light and stiff where you need the power, and compliant where you crave comfort - Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents - You get clean, wireless shifting that's ultra-precise and programmable, thanks to SRAM Force AXS D2 and a power meter for watching your output and getting the most from training - RSL Aero Bottles and Cages make the whole rider system faster to give you even more aerodynamic gains - A new Blendr system on the bar/stem makes it easy to add and remove a daytime running light
Racing is a core part of your life, and you want a bike that's the trifecta of lightweight, aerodynamics and comfort. You want a featherweight frame that makes no compromises, with aerodynamic tube shaping and IsoFlow comfort technology. Performance matters, and you want our highest-level carbon lay-up, tubeless carbon wheels and the wireless electronic shifting of SRAM Force AXS D2.
An insanely light frame made of our highest-level 900 Series OCLV Carbon with aero tubing and IsoFlow comfort technology, and RSL Aero Bottles and Cages that save watts. A 2x12 SRAM Force AXS D2 wireless electronic drivetrain with a power meter for getting more out of training. A universal derailleur hanger so you can get a replacement from anywhere. Plus, it's topped off with Bontrager Aeolus Pro 51 tubeless carbon wheels and a Trek Aero RSL one-piece bar/stem.
The Madone SLR 7 AXS Gen 8 is an insanely light and aero road bike that's ready to take you through the paces on race day. It's built from our top 900 Series OCLV Carbon that keeps weight to a minimum without compromising stiff responsiveness and comfort.
Technical Specifications
Components
BARTAPE
Trek EcoTack
HANDLEBAR
Size: XS Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length Size: S Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length Size: M Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length Size: ML, L Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length Size: XL Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
SADDLE
Size: XS, S Bontrager Aeolus P2 Pro, carbon rails, 155 mm width Size: M, ML, L, XL Bontrager Aeolus Pro, carbon rails, 145 mm width
SEATPOST
Size: XS, S, M, XL Madone aero carbon seat post, 0 mm offset, short length Size: ML, L Madone aero carbon seat post, 0 mm offset, long length
Drivetrain
BOTTOM BRACKET
SRAM DUB, T47 threaded, internal bearing
BRAKES ROTOR
SRAM CentreLine X, CentreLock, round edge, 160 mm
CHAIN
SRAM Force XG-1270, 10-33, 12 speed
CHAINRING
48/35. Max. chainring size 1x: 54T, 2x: 56/43
CRANKSET
Size: XS, S SRAM Force AXS D2, power meter, 48/35, DUB, 165 mm length Size: M SRAM Force AXS D2, power meter, 48/35, DUB, 170 mm length Size: ML, L SRAM Force AXS D2, power meter, 48/35, DUB, 172.5 mm length Size: XL SRAM Force AXS D2, power meter, 48/35, DUB, 175 mm length
FRONT DERAILLEUR
SRAM Force AXS D2, braze-on
REAR DERAILLEUR
SRAM Force AXS D2, 36T max cog
SHIFTERS
SRAM Force AXS D2, 12-speed
Frame
FORK
Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100 mm chamfered thru axle
FRAME
900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
FRAME MATERIAL
CARBON
Other
APPROX. WEIGHT
ML - 7.43 kg/16.39 lb (with TLR sealant, no tubes, no bottles/cages)
Wheels
FRONT WHEEL
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
REAR WHEEL
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle
