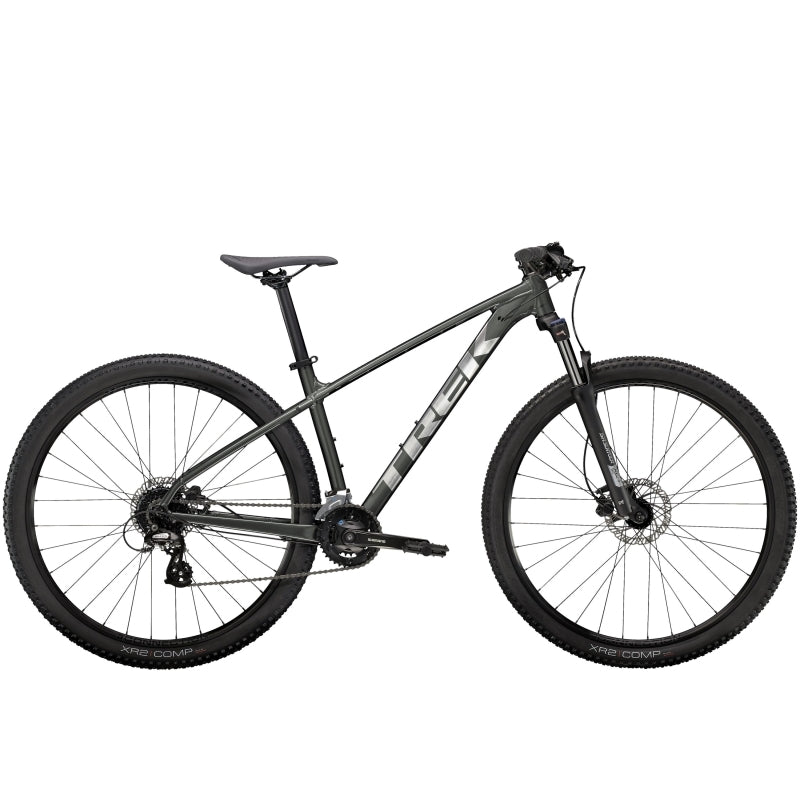

Trek Marlin 5

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2x8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

- It's a real mountain bike that's also perfectly suited to daily commutes, rides around campus or just getting from A to B on any surface
- Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
- The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
- Rack and kickstand mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
- Like every Trek, it's backed by a lifetime warranty

- You're new to the trail and you're looking for a real mountain bike that doubles as a commuter and you want it all at an exceptional value.
A lightweight aluminium frame with internal routing to protect your cables and add to the bike's sleek look, 2x8 drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes and a terrain-smoothing suspension fork with a lockout.
The Marlin 5 is a great ride for all your adventures. But it's also versatile, and Marlin 5 is a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorise and haul a load.

Technical Specifications:
- Rim Size: 29INCH
- Frame Material: Aluminum

- Geometry

- BB Drop: 5.8
- BB Height: 31.0
- Chainstay Length: 43.8
- Eff. Seat Tube Angle: 73.0deg
- Eff. Top Tube: 61.8
- Frame Reach: 43.4
- Frame Size: ML
- Frame Size measurements: 18.5INCH
- Frame Stack: 60.2
- Head Angle: 69.5deg
- Head Tube Length: 9.0
- Offset: 4.2
- Seat Tube: 44.4
- Seat Tube Angle: 71.9deg
- Standover: 75.8
- Trail: 9.3
- Wheelbase: 111.6

- Detailed Specs

- Frame: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
- Fork: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29INCH wheel, 100 mm QR, 100 mm travel
- Fork Travel (Max): 100mm (XS and S: 490mm axle-to-crown, M and up: 509mm axle-to-crown)
- Wheels: Formula alloy hubs, Bontrager Connection rims
- Tires: Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20INCH
- Tire size (max): Frame: 29x2.20INCH (XS & S: 27.5x2.40INCH), Fork: See manufacturer
- Tire Size: 29x2.20INCH
- Hub (front): Formula DC-20, alloy, 6-bolt, 5x100 mm QR
- Hub (rear): Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
- Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
- Spokes: 14 g stainless steel, black
- Skewer (rear): 152x5 mm QR
- Shifters: Shimano M315, 2-speed // Shimano M315, 8-speed
- Front Derailleur: Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
- Rear Derailleur: Shimano Altus M310
- Crank: Shimano M315, 36/22, 175 mm length
- Bottom Bracket: Sealed cartridge, 73mm
- Cassette: Shimano 8-speed, 12-32T
- Chain: KMC Z8.3, 8 speed
- Chainring (Max): 1x: See FAQ, 2x: 36T, 3x: 42T
- Brakeset: Tektro HD-M275 hydraulic disc
- Saddle: Bontrager Arvada, steel rails, 138 mm width
- Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
- Handlebar: Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
- Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
- Headset: Semi-integrated, 1-1/8INCH
- Weight: M - 13.
