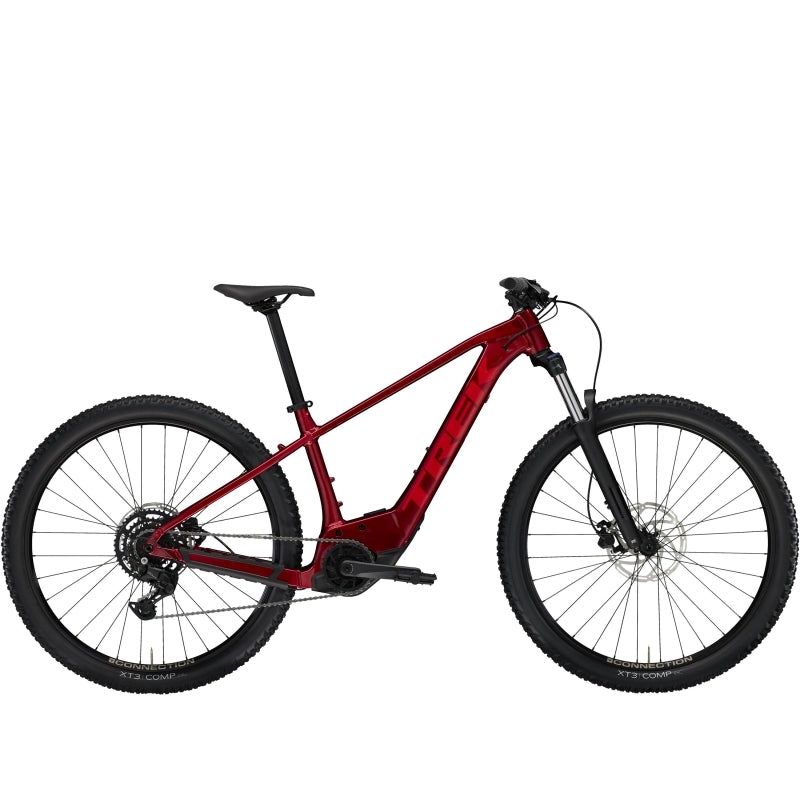

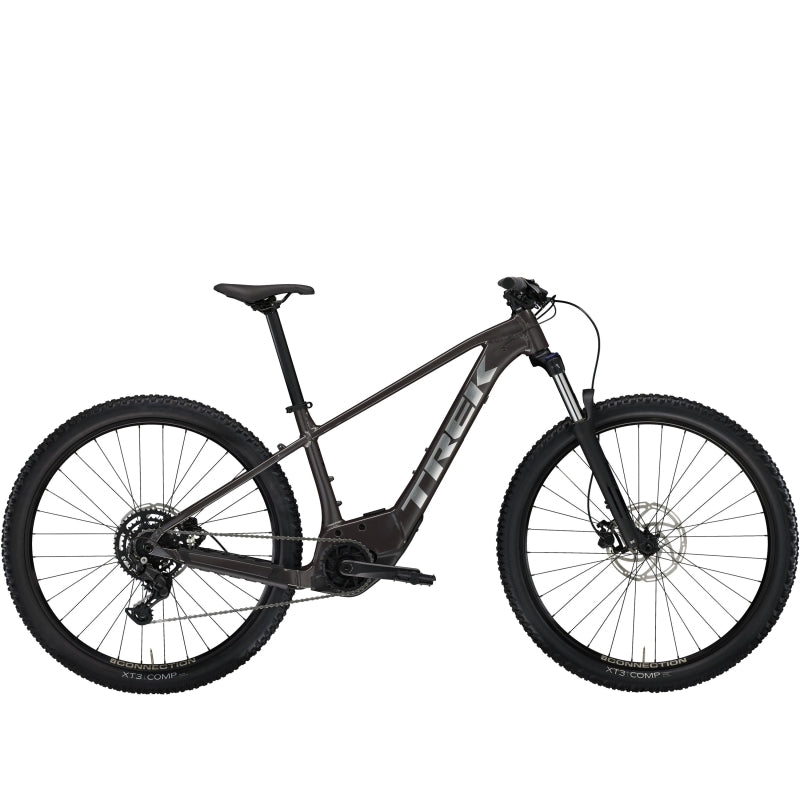

Trek Marlin+ 6

The Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120 mm suspension fork soaks up rocks, roots and pot holes on your ride, while the 9-speed Shimano CUES is durable and reliable for wherever you roll.

- Its AUTO mode adaptive motor support recognises speed reductions and adjusts assistance automatically
- The 120 mm suspension keeps your ride feeling smooth through bumps, roots and rough stuff
- The Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
- Trail-savvy geometry keeps handling easy and confident from singletrack to city streets
- Tons of rack and mudguard mounts let you customise your ride for the trail or taking on daily commutes

- You want a boost of power on the trail without spending an arm and a leg. You love the trail-to-town capability of the Marlin and want a ride that helps you ride a little faster or pedal further.
An Alpha Gold Aluminium frame with real mountain bike geometry and a coil-sprung 120 mm fork. A reliable Bosch Active Line Plus 50Nm drive system capable of assisting you to speeds of 32 km/h. A compact Purion 200 remote with built-in display. Plus, hydraulic disc brakes and a 9-speed Shimano CUES drivetrain that performs well, even under load.
The Marlin+ is the go-to for riders looking to dip their toes into the electric mountain bike world. Its trail-savvy frame gives you confident control, and a Bosch Active Line Plus motor offers enough power to take the burn out of long climbs.

Technical Specifications:
- Primary Battery Type: 400WH
- Rim Size: 27.5INCH
- Frame Material: Aluminum

- Geometry

- BB Drop: 4.5
- BB Height: 31.3
- Chainstay Length: 47.0
- Eff. Seat Tube Angle: 74.0 deg
- Eff. Top Tube: 55.1
- Frame Reach: 39.0
- Frame Size: XS
- Frame Stack: 56.3
- Head Angle: 66.5 deg
- Head Tube Length: 9.0
- Offset: 4.6
- Seat Tube: 34.0
- Seat Tube Angle: 73.8 deg
- Standover: 67.8
- Trail: 11.0
- Wheelbase: 112.9

- Detailed Specs

- Frame: Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
- Fork: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 100 mm travel
- Fork Travel (Max): See service manual
- Tires: Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40INCH
- Tire size (max): Frame: 29x2.60INCH (XS: 27.5x2.60INCH), Fork: See manufacturer
- Tire Size: 27.5x2.40INCH
- Hub (front): Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
- Hub (rear): Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
- Rim: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
- Skewer (rear): Bontrager Switch thru-axle, removable lever
- Shifters: Shimano U4000, 9-speed
- Rear Derailleur: Shimano CUES U4000
- Crank: FSA CK-220, 165 mm length
- Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
- Chainring (Max): 1x: 36T, min 32T
- Chainring: FSA, 32T, steel w/guard
- Rotor size: Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Brake Rotor: Tektro, CentreLock, 203 mm
- Pedals: VP-536 nylon platform
- Saddle: Bontrager Verse Short, stainless steel rails
- Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
- Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
- Stem: Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
- Headset: Semi-integrated, loose ball bearing, 1-1/8
