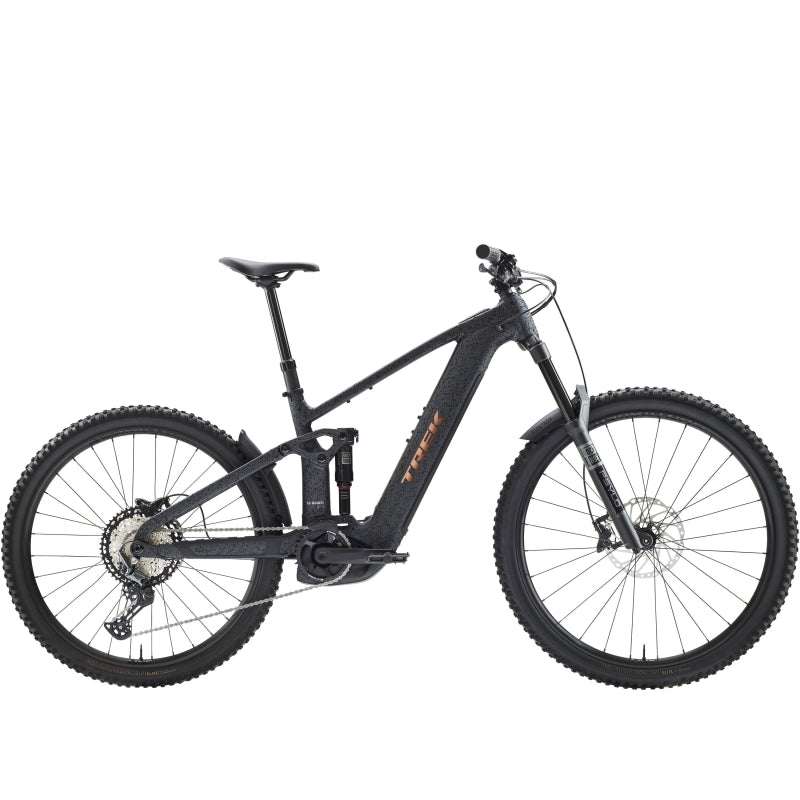

Trek
Trek Rail+ 5
Trek Rail+ 5
Couldn't load pickup availability
Bosch Performance Line CX motor: 120Nm upgrade ready
Bosch Performance Line CX sets the standard for eMTB performance with 85Nm of torque out of the box, but can be tuned all the way up to 120Nm and 750W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.
New RIB 2.0
Removable Integrated Battery (RIB 2.0) makes it easy to remove your battery for more convenient charging or travelling, and you dont have to worry about dropping it thanks to a secondary safety catch.
Extend your ride
Wanna take your ride even further? Pair a 250Wh PowerMore range extender with your bike to chase your most epic adventures.
Bosch Mini Remote
The compact, ergonomic Mini Remote lets you easily change assist level, activate Walk mode, or turn on optional lights, all without moving your hand off the handlebar. Plus, it's wireless and connects with your System Controller via Bluetooth
Mixed wheel size
You get a 29INCH front wheel for monster truckin' over stuff, with a smaller 27.5INCH wheel out back for getting rowdy.
Technical Specifications
Components
| GRIPS | Trek Line Comp, nylon lock-on |
| HANDLEBAR | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width |
| PEDALS | VP-536 nylon platform |
| SADDLE | Bontrager Verse P3, steel rails |
| SEATPOST | Size: S TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm Size: M, L, XL TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm |
| STEM | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
Drivetrain
| BRAKES | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| BRAKES ROTOR | Shimano RT64, CentreLock, 203 mm |
| CASSETTE | Shimano M6200, 10-51, 12-speed |
| CHAIN | Shimano Deore M6100, 12-speed |
| CHAINRING | E*thirteen, 34T, steel |
| CRANKSET | FSA alloy, 160 mm length |
| REAR DERAILLEUR | Shimano Deore M8200, long cage |
| SHIFTERS | Shimano Deore M6200 |
E-bike
| DISPLAY/CONTROLLER | Bosch Kiox 400C, mini remote |
| E MOTOR | Bosch Performance Line CX (Europe and APAC: 25 km/h, US and ROW: 20 mph / 32 km/h) |
| E MOTOR BATTERY | Bosch PowerTube 800 Wh, smart system |
| E MOTOR CHARGER | Bosch standard 2A, 230V, smart system |
Frame
| FORK | RockShox Psylo Silver RC, Solo Air, Motion Control, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel |
| FRAME | Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel |
| FRAME MATERIAL | Alloy |
| FRONT TRAVEL | 160mm |
| REAR SHOCK | RockShox Deluxe Select, 205 mm x 65 mm |
| REAR TRAVEL | 160mm |
Other
| ACCESSORIES | Trek custom mudguard |
| APPROX. WEIGHT | M - 24.78 kg / 54.64 lbs (with TLR sealant, no tubes) |
Wheels
| FRONT HUB | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
| REAR HUB | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| RIMS | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve |
| TYRES | Size: S Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" Size: M, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" |
